Fundamental Concepts

This tutorial walks you through some of the fundamental Airflow concepts, objects, and their usage while writing your first DAG.

Example Pipeline definition

Here is an example of a basic pipeline definition. Do not worry if this looks complicated, a line by line explanation follows below.

airflow/example_dags/tutorial.py[source]


import textwrap
from datetime import datetime, timedelta

# The DAG object; we'll need this to instantiate a DAG
from airflow.models.dag import DAG

# Operators; we need this to operate!
from airflow.providers.standard.operators.bash import BashOperator
with DAG(
    "tutorial",
    # These args will get passed on to each operator
    # You can override them on a per-task basis during operator initialization
    default_args={
        "depends_on_past": False,
        "email": ["airflow@example.com"],
        "email_on_failure": False,
        "email_on_retry": False,
        "retries": 1,
        "retry_delay": timedelta(minutes=5),
        # 'queue': 'bash_queue',
        # 'pool': 'backfill',
        # 'priority_weight': 10,
        # 'end_date': datetime(2016, 1, 1),
        # 'wait_for_downstream': False,
        # 'execution_timeout': timedelta(seconds=300),
        # 'on_failure_callback': some_function, # or list of functions
        # 'on_success_callback': some_other_function, # or list of functions
        # 'on_retry_callback': another_function, # or list of functions
        # 'sla_miss_callback': yet_another_function, # or list of functions
        # 'on_skipped_callback': another_function, #or list of functions
        # 'trigger_rule': 'all_success'
    },
    description="A simple tutorial DAG",
    schedule=timedelta(days=1),
    start_date=datetime(2021, 1, 1),
    catchup=False,
    tags=["example"],
) as dag:

    # t1, t2 and t3 are examples of tasks created by instantiating operators
    t1 = BashOperator(
        task_id="print_date",
        bash_command="date",
    )

    t2 = BashOperator(
        task_id="sleep",
        depends_on_past=False,
        bash_command="sleep 5",
        retries=3,
    )
    t1.doc_md = textwrap.dedent(
        """\
    #### Task Documentation
    You can document your task using the attributes `doc_md` (markdown),
    `doc` (plain text), `doc_rst`, `doc_json`, `doc_yaml` which gets
    rendered in the UI's Task Instance Details page.
    ![img](https://imgs.xkcd.com/comics/fixing_problems.png)
    **Image Credit:** Randall Munroe, [XKCD](https://xkcd.com/license.html)
    """
    )

    dag.doc_md = __doc__  # providing that you have a docstring at the beginning of the DAG; OR
    dag.doc_md = """
    This is a documentation placed anywhere
    """  # otherwise, type it like this
    templated_command = textwrap.dedent(
        """
    {% for i in range(5) %}
        echo "{{ ds }}"
        echo "{{ macros.ds_add(ds, 7)}}"
    {% endfor %}
    """
    )

    t3 = BashOperator(
        task_id="templated",
        depends_on_past=False,
        bash_command=templated_command,
    )

    t1 >> [t2, t3]

It’s a DAG definition file

One thing to wrap your head around (it may not be very intuitive for everyone at first) is that this Airflow Python script is really just a configuration file specifying the DAG’s structure as code. The actual tasks defined here will run in a different context from the context of this script. Different tasks run on different workers at different points in time, which means that this script cannot be used to cross communicate between tasks. Note that for this purpose we have a more advanced feature called XComs.

People sometimes think of the DAG definition file as a place where they can do some actual data processing - that is not the case at all! The script’s purpose is to define a DAG object. It needs to evaluate quickly (seconds, not minutes) since the scheduler will execute it periodically to reflect the changes if any.

Importing Modules

An Airflow pipeline is just a Python script that happens to define an Airflow DAG object. Let’s start by importing the libraries we will need.

airflow/example_dags/tutorial.py[source]

import textwrap
from datetime import datetime, timedelta

# The DAG object; we'll need this to instantiate a DAG
from airflow.models.dag import DAG

# Operators; we need this to operate!
from airflow.providers.standard.operators.bash import BashOperator

See Modules Management for details on how Python and Airflow manage modules.

Default Arguments

We’re about to create a DAG and some tasks, and we have the choice to explicitly pass a set of arguments to each task’s constructor (which would become redundant), or (better!) we can define a dictionary of default parameters that we can use when creating tasks.

airflow/example_dags/tutorial.py[source]

# These args will get passed on to each operator
# You can override them on a per-task basis during operator initialization
default_args={
    "depends_on_past": False,
    "email": ["airflow@example.com"],
    "email_on_failure": False,
    "email_on_retry": False,
    "retries": 1,
    "retry_delay": timedelta(minutes=5),
    # 'queue': 'bash_queue',
    # 'pool': 'backfill',
    # 'priority_weight': 10,
    # 'end_date': datetime(2016, 1, 1),
    # 'wait_for_downstream': False,
    # 'execution_timeout': timedelta(seconds=300),
    # 'on_failure_callback': some_function, # or list of functions
    # 'on_success_callback': some_other_function, # or list of functions
    # 'on_retry_callback': another_function, # or list of functions
    # 'sla_miss_callback': yet_another_function, # or list of functions
    # 'on_skipped_callback': another_function, #or list of functions
    # 'trigger_rule': 'all_success'
},

For more information about the BaseOperator’s parameters and what they do, refer to the airflow.models.baseoperator.BaseOperator documentation.

Also, note that you could easily define different sets of arguments that would serve different purposes. An example of that would be to have different settings between a production and development environment.

Instantiate a DAG

We’ll need a DAG object to nest our tasks into. Here we pass a string that defines the dag_id, which serves as a unique identifier for your DAG. We also pass the default argument dictionary that we just defined and define a schedule of 1 day for the DAG.

airflow/example_dags/tutorial.py[source]

with DAG(
    "tutorial",
    # These args will get passed on to each operator
    # You can override them on a per-task basis during operator initialization
    default_args={
        "depends_on_past": False,
        "email": ["airflow@example.com"],
        "email_on_failure": False,
        "email_on_retry": False,
        "retries": 1,
        "retry_delay": timedelta(minutes=5),
        # 'queue': 'bash_queue',
        # 'pool': 'backfill',
        # 'priority_weight': 10,
        # 'end_date': datetime(2016, 1, 1),
        # 'wait_for_downstream': False,
        # 'execution_timeout': timedelta(seconds=300),
        # 'on_failure_callback': some_function, # or list of functions
        # 'on_success_callback': some_other_function, # or list of functions
        # 'on_retry_callback': another_function, # or list of functions
        # 'sla_miss_callback': yet_another_function, # or list of functions
        # 'on_skipped_callback': another_function, #or list of functions
        # 'trigger_rule': 'all_success'
    },
    description="A simple tutorial DAG",
    schedule=timedelta(days=1),
    start_date=datetime(2021, 1, 1),
    catchup=False,
    tags=["example"],
) as dag:

Operators

An operator defines a unit of work for Airflow to complete. Using operators is the classic approach to defining work in Airflow. For some use cases, it’s better to use the TaskFlow API to define work in a Pythonic context as described in Working with TaskFlow. For now, using operators helps to visualize task dependencies in our DAG code.

All operators inherit from the BaseOperator, which includes all of the required arguments for running work in Airflow. From here, each operator includes unique arguments for the type of work it’s completing. Some of the most popular operators are the PythonOperator, the BashOperator, and the KubernetesPodOperator.

Airflow completes work based on the arguments you pass to your operators. In this tutorial, we use the BashOperator to run a few bash scripts.

Tasks

To use an operator in a DAG, you have to instantiate it as a task. Tasks determine how to execute your operator’s work within the context of a DAG.

In the following example, we instantiate the BashOperator as two separate tasks in order to run two separate bash scripts. The first argument for each instantiation, task_id, acts as a unique identifier for the task.

airflow/example_dags/tutorial.py[source]

t1 = BashOperator(
    task_id="print_date",
    bash_command="date",
)

t2 = BashOperator(
    task_id="sleep",
    depends_on_past=False,
    bash_command="sleep 5",
    retries=3,
)

Notice how we pass a mix of operator specific arguments (bash_command) and an argument common to all operators (retries) inherited from BaseOperator to the operator’s constructor. This is simpler than passing every argument for every constructor call. Also, notice that in the second task we override the retries parameter with 3.

The precedence rules for a task are as follows:

  1. Explicitly passed arguments

  2. Values that exist in the default_args dictionary

  3. The operator’s default value, if one exists

Note

A task must include or inherit the arguments task_id and owner, otherwise Airflow will raise an exception. A fresh install of Airflow will have a default value of ‘airflow’ set for owner, so you only really need to worry about ensuring task_id has a value.

Templating with Jinja

Airflow leverages the power of Jinja Templating and provides the pipeline author with a set of built-in parameters and macros. Airflow also provides hooks for the pipeline author to define their own parameters, macros and templates.

This tutorial barely scratches the surface of what you can do with templating in Airflow, but the goal of this section is to let you know this feature exists, get you familiar with double curly brackets, and point to the most common template variable: {{ ds }} (today’s “date stamp”).

airflow/example_dags/tutorial.py[source]

templated_command = textwrap.dedent(
    """
{% for i in range(5) %}
    echo "{{ ds }}"
    echo "{{ macros.ds_add(ds, 7)}}"
{% endfor %}
"""
)

t3 = BashOperator(
    task_id="templated",
    depends_on_past=False,
    bash_command=templated_command,
)

Notice that the templated_command contains code logic in {% %} blocks, references parameters like {{ ds }}, and calls a function as in {{ macros.ds_add(ds, 7)}}.

Files can also be passed to the bash_command argument, like bash_command='templated_command.sh', where the file location is relative to the directory containing the pipeline file (tutorial.py in this case). This may be desirable for many reasons, like separating your script’s logic and pipeline code, allowing for proper code highlighting in files composed in different languages, and general flexibility in structuring pipelines. It is also possible to define your template_searchpath as pointing to any folder locations in the DAG constructor call.

Using that same DAG constructor call, it is possible to define user_defined_macros which allow you to specify your own variables. For example, passing dict(foo='bar') to this argument allows you to use {{ foo }} in your templates. Moreover, specifying user_defined_filters allows you to register your own filters. For example, passing dict(hello=lambda name: 'Hello %s' % name) to this argument allows you to use {{ 'world' | hello }} in your templates. For more information regarding custom filters have a look at the Jinja Documentation.

For more information on the variables and macros that can be referenced in templates, make sure to read through the Templates reference.

Adding DAG and Tasks documentation

We can add documentation for DAG or each single task. DAG documentation only supports markdown so far, while task documentation supports plain text, markdown, reStructuredText, json, and yaml. The DAG documentation can be written as a doc string at the beginning of the DAG file (recommended), or anywhere else in the file. Below you can find some examples on how to implement task and DAG docs, as well as screenshots:

airflow/example_dags/tutorial.py[source]

t1.doc_md = textwrap.dedent(
    """\
#### Task Documentation
You can document your task using the attributes `doc_md` (markdown),
`doc` (plain text), `doc_rst`, `doc_json`, `doc_yaml` which gets
rendered in the UI's Task Instance Details page.
![img](https://imgs.xkcd.com/comics/fixing_problems.png)
**Image Credit:** Randall Munroe, [XKCD](https://xkcd.com/license.html)
"""
)

dag.doc_md = __doc__  # providing that you have a docstring at the beginning of the DAG; OR
dag.doc_md = """
This is a documentation placed anywhere
"""  # otherwise, type it like this

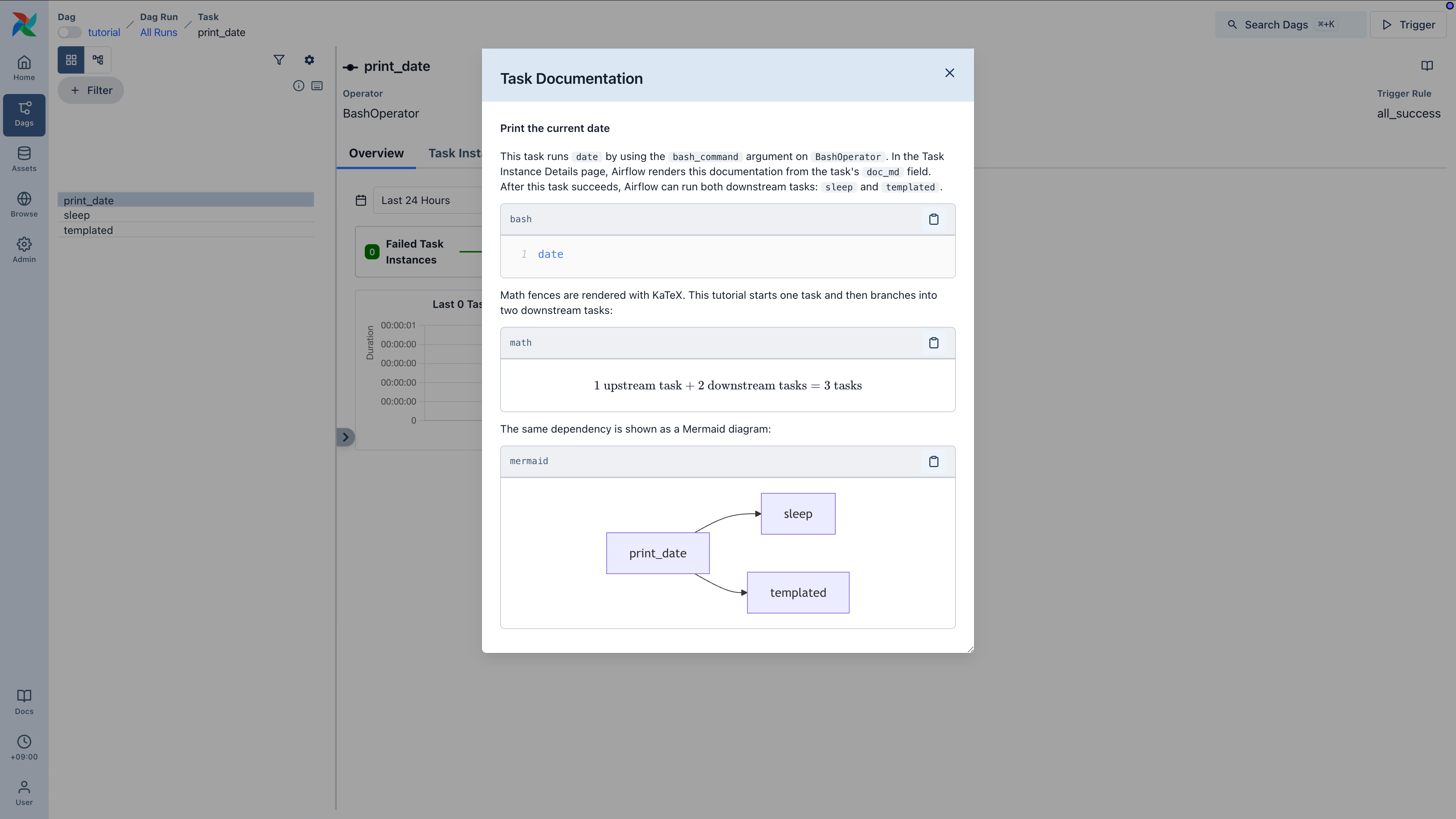

../_images/task_doc.png ../_images/dag_doc.png

Setting up Dependencies

We have tasks t1, t2 and t3 that depend on each other. Here’s a few ways you can define dependencies between them:

t1.set_downstream(t2)

# This means that t2 will depend on t1
# running successfully to run.
# It is equivalent to:
t2.set_upstream(t1)

# The bit shift operator can also be
# used to chain operations:
t1 >> t2

# And the upstream dependency with the
# bit shift operator:
t2 << t1

# Chaining multiple dependencies becomes
# concise with the bit shift operator:
t1 >> t2 >> t3

# A list of tasks can also be set as
# dependencies. These operations
# all have the same effect:
t1.set_downstream([t2, t3])
t1 >> [t2, t3]
[t2, t3] << t1

Note that when executing your script, Airflow will raise exceptions when it finds cycles in your DAG or when a dependency is referenced more than once.

Using time zones

Creating a time zone aware DAG is quite simple. Just make sure to supply a time zone aware dates using pendulum. Don’t try to use standard library timezone as they are known to have limitations and we deliberately disallow using them in DAGs.

Recap

Alright, so we have a pretty basic DAG. At this point your code should look something like this:

airflow/example_dags/tutorial.py[source]


import textwrap
from datetime import datetime, timedelta

# The DAG object; we'll need this to instantiate a DAG
from airflow.models.dag import DAG

# Operators; we need this to operate!
from airflow.providers.standard.operators.bash import BashOperator
with DAG(
    "tutorial",
    # These args will get passed on to each operator
    # You can override them on a per-task basis during operator initialization
    default_args={
        "depends_on_past": False,
        "email": ["airflow@example.com"],
        "email_on_failure": False,
        "email_on_retry": False,
        "retries": 1,
        "retry_delay": timedelta(minutes=5),
        # 'queue': 'bash_queue',
        # 'pool': 'backfill',
        # 'priority_weight': 10,
        # 'end_date': datetime(2016, 1, 1),
        # 'wait_for_downstream': False,
        # 'execution_timeout': timedelta(seconds=300),
        # 'on_failure_callback': some_function, # or list of functions
        # 'on_success_callback': some_other_function, # or list of functions
        # 'on_retry_callback': another_function, # or list of functions
        # 'sla_miss_callback': yet_another_function, # or list of functions
        # 'on_skipped_callback': another_function, #or list of functions
        # 'trigger_rule': 'all_success'
    },
    description="A simple tutorial DAG",
    schedule=timedelta(days=1),
    start_date=datetime(2021, 1, 1),
    catchup=False,
    tags=["example"],
) as dag:

    # t1, t2 and t3 are examples of tasks created by instantiating operators
    t1 = BashOperator(
        task_id="print_date",
        bash_command="date",
    )

    t2 = BashOperator(
        task_id="sleep",
        depends_on_past=False,
        bash_command="sleep 5",
        retries=3,
    )
    t1.doc_md = textwrap.dedent(
        """\
    #### Task Documentation
    You can document your task using the attributes `doc_md` (markdown),
    `doc` (plain text), `doc_rst`, `doc_json`, `doc_yaml` which gets
    rendered in the UI's Task Instance Details page.
    ![img](https://imgs.xkcd.com/comics/fixing_problems.png)
    **Image Credit:** Randall Munroe, [XKCD](https://xkcd.com/license.html)
    """
    )

    dag.doc_md = __doc__  # providing that you have a docstring at the beginning of the DAG; OR
    dag.doc_md = """
    This is a documentation placed anywhere
    """  # otherwise, type it like this
    templated_command = textwrap.dedent(
        """
    {% for i in range(5) %}
        echo "{{ ds }}"
        echo "{{ macros.ds_add(ds, 7)}}"
    {% endfor %}
    """
    )

    t3 = BashOperator(
        task_id="templated",
        depends_on_past=False,
        bash_command=templated_command,
    )

    t1 >> [t2, t3]

Testing

Running the Script

Time to run some tests. First, let’s make sure the pipeline is parsed successfully.

Let’s assume we are saving the code from the previous step in tutorial.py in the DAGs folder referenced in your airflow.cfg. The default location for your DAGs is ~/airflow/dags.

python ~/airflow/dags/tutorial.py

If the script does not raise an exception it means that you have not done anything horribly wrong, and that your Airflow environment is somewhat sound.

Command Line Metadata Validation

Let’s run a few commands to validate this script further.

# initialize the database tables
airflow db migrate

# print the list of active DAGs
airflow dags list

# prints the list of tasks in the "tutorial" DAG
airflow tasks list tutorial

# prints the hierarchy of tasks in the "tutorial" DAG
airflow tasks list tutorial --tree

Testing

Let’s test by running the actual task instances for a specific date. The date specified in this context is called the logical date (also called execution date for historical reasons), which simulates the scheduler running your task or DAG for a specific date and time, even though it physically will run now (or as soon as its dependencies are met).

We said the scheduler runs your task for a specific date and time, not at. This is because each run of a DAG conceptually represents not a specific date and time, but an interval between two times, called a data interval. A DAG run’s logical date is the start of its data interval.

# command layout: command subcommand [dag_id] [task_id] [(optional) date]

# testing print_date
airflow tasks test tutorial print_date 2015-06-01

# testing sleep
airflow tasks test tutorial sleep 2015-06-01

Now remember what we did with templating earlier? See how this template gets rendered and executed by running this command:

# testing templated
airflow tasks test tutorial templated 2015-06-01

This should result in displaying a verbose log of events and ultimately running your bash command and printing the result.

Note that the airflow tasks test command runs task instances locally, outputs their log to stdout (on screen), does not bother with dependencies, and does not communicate state (running, success, failed, …) to the database. It simply allows testing a single task instance.

The same applies to airflow dags test, but on a DAG level. It performs a single DAG run of the given DAG id. While it does take task dependencies into account, no state is registered in the database. It is convenient for locally testing a full run of your DAG, given that e.g. if one of your tasks expects data at some location, it is available.

What’s Next?

That’s it! You have written and tested your very first Airflow pipeline. Merging your code into a repository that has a Scheduler running against it should result in being triggered and run every day.

Here are a few things you might want to do next:

See also

  • Continue to the next step of the tutorial: Working with TaskFlow

  • Skip to the Core Concepts section for detailed explanation of Airflow concepts such as DAGs, Tasks, Operators, and more

Was this entry helpful?
